SHV Series의 다양한 직류고전압 전원장치를 지원하며 Module Type 및 Rack Type으로 선택 가능합니다.

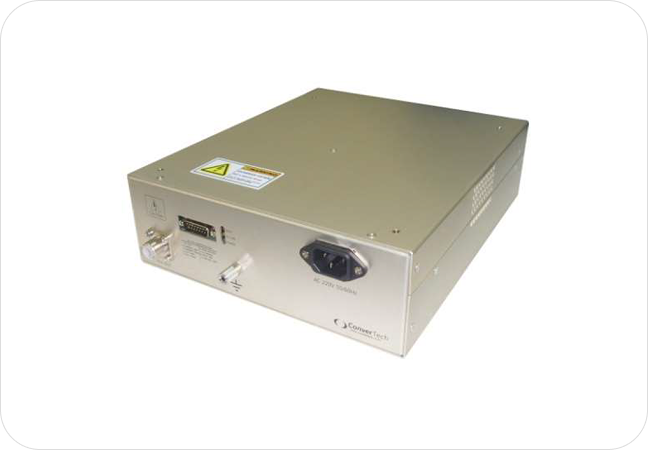

제품소개 H600~1000M
H600~1000M
  • Analytical X-ray Source Electrostatics
  • E-beam System Radar Modulator
  • Ion Implantation
  • Capacitor Charging System
  • Ion Implantation CW Lasers
  • General Laboratory
SPECIFICATIONS
  • Status Indicators : Voltage Mode, Current Mode Open/Close, High Voltage, Over Voltage, Over Current Regulation Err
  • Input Voltage : 110V or 220V ±10% 50/60Hz
  • Output Voltage : 0V to Rated Voltage / Model available from 1kV to 60kV
  • Voltage Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
  • Current Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
  • Ripple : 0.2% within rms output voltage
  • Efficiency : greater then 80%
  • Temperature coefficient : 100ppm/℃
  • Stability : 0.01%(100ppm) after ½ hour warm-up / 0.02%(200ppm) per 8 hour
  • Voltage & Current Monitors : 0~10V (±1%)

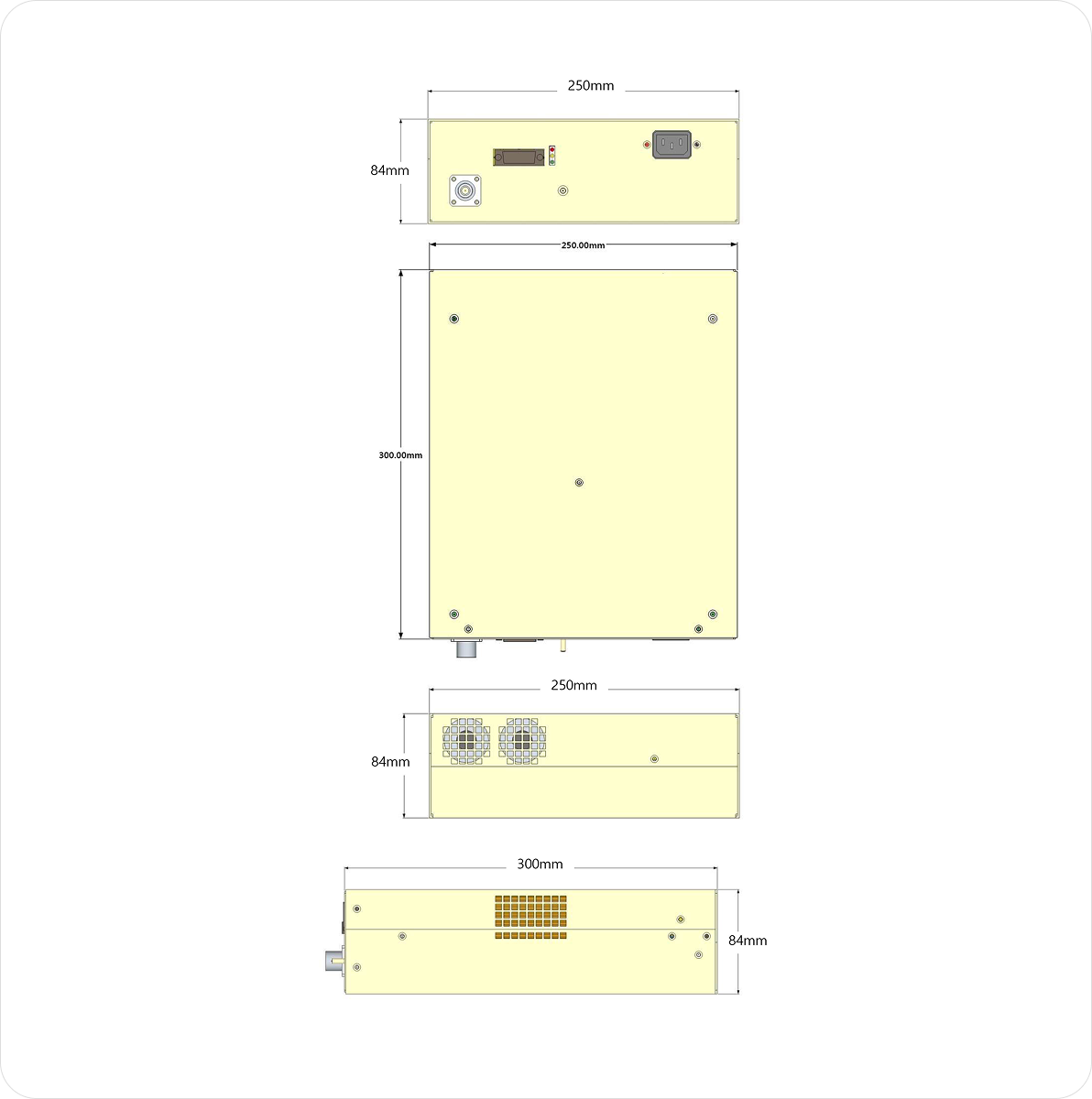

  • Dimensions : 1~40kV : 250(W)x84(H)x300(D)mm
  • Ambient Temperature : Operating: 0℃ to +45℃ / Storage: -20℃ to +75℃
  • AC Line Input Cabl : IEC320 with mating cable
  • Output Cable : 1P High Voltage Connector (3m)
  • Weight : 6kg ~ 7kg
SPECIAL FEATURES
  • Voltage range from 1kV to 60kV
  • Resonant type converter
  • Low Stored Energy
  • Over voltage & Short protection
  • Output ON/OFF Control
  • Voltage & Current Monitoring
  • Very compact & lightweight
  • Low EMI & RFI
  • OEM customization available
OPTIONS
  • FG Floating GND
  • SS Soft Start
  • NS No Soft Start
H600M SERIES MODELS
Model kV mA
H600M01K600 1kV 600mA
H600M02K300 2kV 300mA
H600M03K200 3kV 200mA
H600M05K120 5kV 120mA
H600M10K60 10kV 60mA
H600M15K40 15kV 40mA
H600M20K30 20kV 30mA
H600M30K20 30kV 20mA
H600M40K15 40kV 15mA
H600M SERIES MODELS
Model kV mA
H1000M01K1000 1kV 1000mA
H1000M02K500 2kV 500mA
H1000M03K333 3kV 333mA
H1000M05K200 5kV 200mA
H1000M10K100 10kV 100mA
H1000M15K66 15kV 66.7mA
H1000M20K50 20kV 50mA
H1000M30K33 30kV 33.3mA
H1000M40K25 40kV 25mA
CONNECTOR
PIN Function Parameter
1 +10Vdc Reference 10Vdc output
2 Current Monitors Output 0~10Vdc Zout = 1KΩ
3 Current Programming Input 0~10Vdc
4 Voltage Monitors Output 0~10Vdc Zout = 1KΩ
5 Voltage Programming Input 0~10Vdc
6 PROG RETURN GND
7 Enable input H.V ON 6PIN and 7PIN Disconnected
8 FAUIT IND On Error Ground Connection (Maximum input Voltage 5V)
9 CTR & Monitor Returns Programming/ Monitors Ground
