제품소개 SHV30M

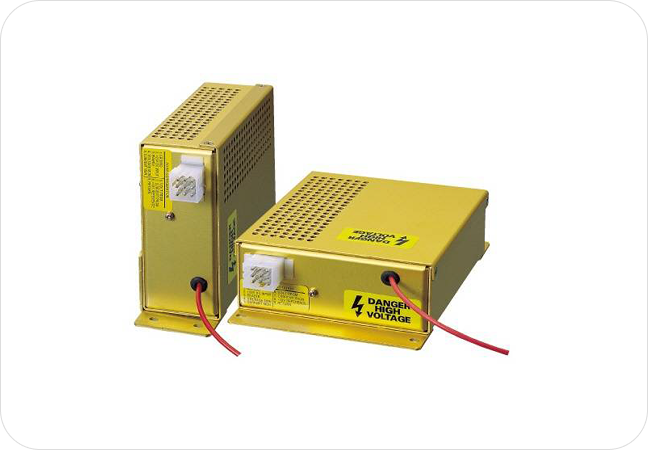

SHV30M
- Electrophoresis
- Electron Beam
- Ion Source
- Photomultipliers
- Laboratory Applications
SPECIFICATIONS
- Input Voltage : 24Vdc ±10% 2A
- Output Voltage : 1kV to 30kVdc
- Line Regulation : ±0.01% at the ±10% input change
- Load Regulation : 0.02% at full load
- Ripple : Within 0.1% rms output voltage
- Stability : 0.2% per 8 hours (after 30min warm-up)
- Ambient Temperature Operating : 0℃ to +40℃
- Weight : 1.25kg

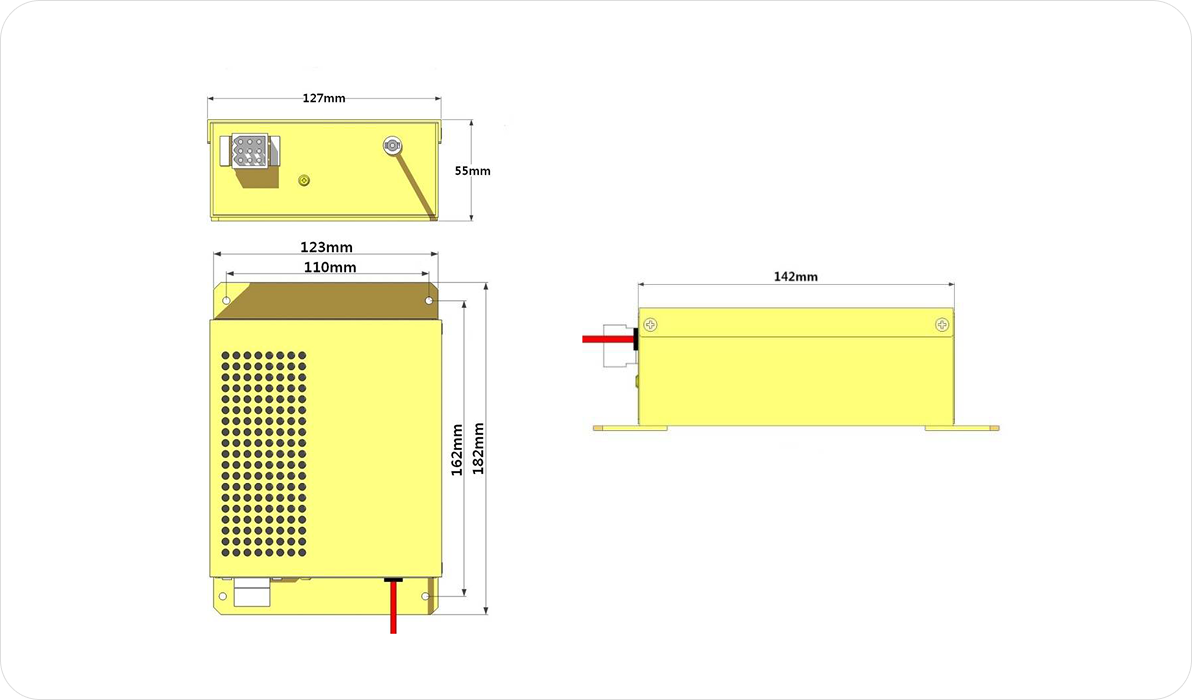

- Dimensions : 127mm(w) x 55mm(H) x 142mm(D)
CONNECTOR

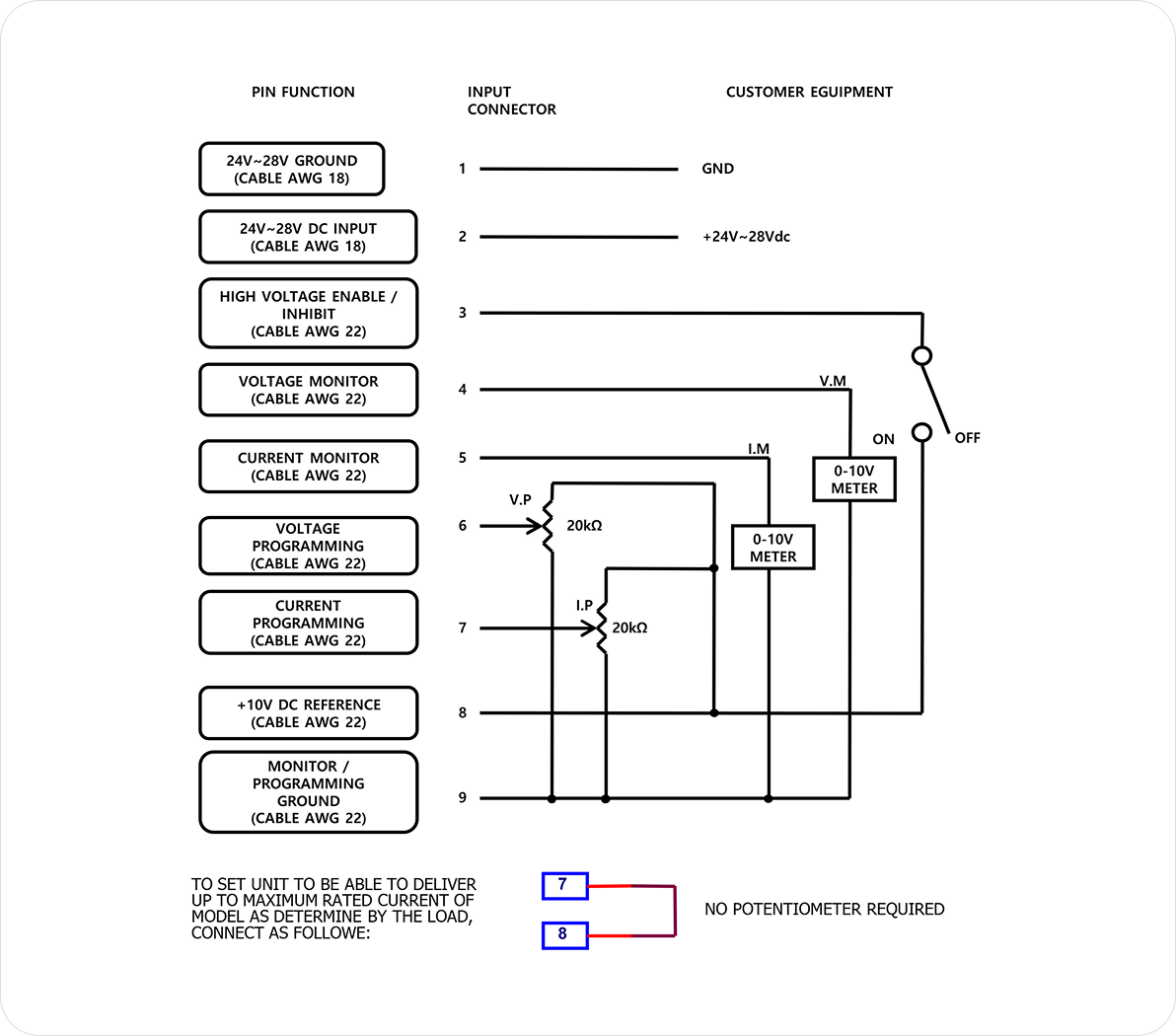

| PIN | Function | Parameter |
|---|---|---|
| 1 | Power Ground | 24Vdc Power Ground |
| 2 | +Power input | 24Vdc Power input |
| 3 | Enable input | 8PIN Input H.V ON / 8PIN block H.V OFF |
| 4 | Voltage Monitor | 0~10V Zout = 1kΩ |
| 5 | Current Monitor | 0~10V Zout = 1KΩ |
| 6 | Voltage Programming | 0~10V input |
| 7 | Current Programming | 0~10V input |
| 8 | +10Vdc Reference | 10V output |
| 9 | Test Point / Programming Return | Test Point / Programming Ground |
SHV30 SERIES MODELS
| SHV30M 1kV | SHV30M 5kV | SHV30M 10kV | SHV30M 15kV | SHV30M 20kV | SHV30M 30kV | |
|---|---|---|---|---|---|---|
| MAX Voltage | 1kV | 5kV | 10kV | 15kV | 20kV | 30kV |
| MAX Current | 30mA | 6mA | 3mA | 2mA | 1.5mA | 1mA |
Control I/O
Interface is provided for remote control and monitoring
