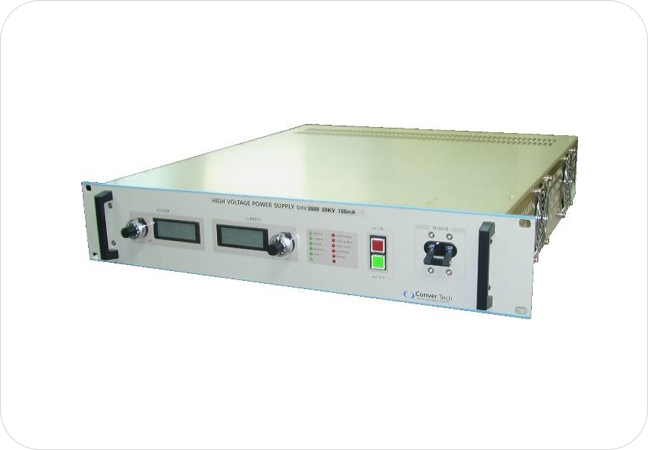

제품소개 SHV600~2000R
SHV600~2000R
  • Arc Power Supply
  • Ion Source
  • Capacitor Charging System
  • Ion Implantation CW Lasers
  • General Laboratory
SPECIFICATIONS
  • Status Indicators : Voltage Mode, Current Mode, Open/Close, High Voltage Over Current, Over Voltage, Regulation Err, Over Temperature, Over Power
  • Input Voltage : 220VAC ±10% 50/60Hz
  • Output Voltage : 0V to Rated Voltage / Model available from 1~130kV
  • Voltage Regulation : Load: 0.05% at full load change / Line: 0.05% at 10% input change
  • Current Regulation : Load: 0.05% at full load change / Line: 0.05% at 10% input change
  • Ripple : 0.2% within p-p output voltage
  • Efficiency : greater then 80%
  • Temperature coefficient : 100ppm/℃
  • Stability : 0.01% after ½ hour warm-up
  • Front Panel Controls : Voltage and current are adjustable by High voltage ON/OFF SW/indicator
  • Metering : 3 ½ Digit voltage and current meters

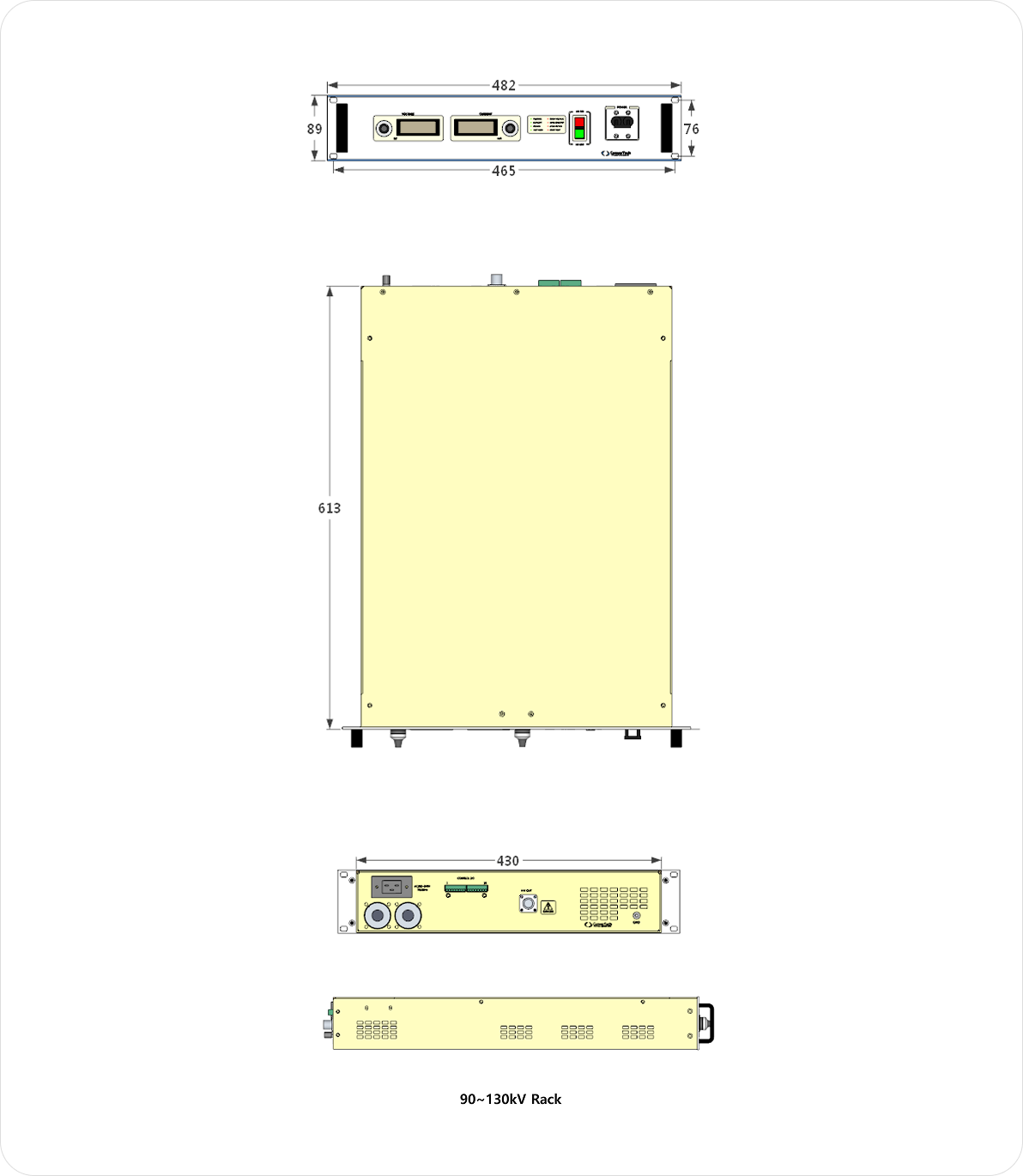

  • Dimensions : 482(W)x89(H)x498(D)mm : 1kV~80kV / 482(W)x89(H)x613(D)mm : 90kV-130kV
  • Ambient Temperature : Operating: 0℃ to 40℃ / Storage: -40℃ to 85℃
  • AC Line Input Cable : 1.5m
  • Output Cable : 3.3m shielded coaxial high voltage cable
  • Weight : 1kV~80kV : 25kg / 90kV~130kV 30kg
SPECIAL FEATURES
  • Voltage range from 1kV~130kV
  • Resonant type converter
  • Very compact & lightweight
  • Low EMI & RFI
  • System status indicator & easy interface
  • Many available option
  • OEM customization available
OPTIONS
  • LR Low Ripple
  • CP Constant Power Control
  • FL Filament power Supply
  • SS Soft Start
  • NS No Soft Start
MODEL
600W Current mA 1200W Current mA 2000W Current mA
1 600 1200 2000
2 300 600 1000
3 200 400 666
5 120 240 400
6 100 200 333
10 60 120 200
15 40 80 133
20 30 60 100
30 20 40 66.5
40 15 30 50
50 12 24 40
60 10 20 33
70 8.6 17 28
80 7.5 15 25
100 6 12 20
120 5 10 16.5
130 4.5 9.2 15
CONNECTOR
PIN Function Parameter
1 +10Vdc Reference 10Vdc output
2 Voltage Programming Input 0~10Vdc Zo = 5KΩ
3 Voltage Programming Output Front Voltage Volume Control
4 Current Programming Input 0~10Vdc Zout = 5kΩ
5 Current Programming Output Front Current Volume Control
6 Current Monitors 0~10Vdc output
7 Voltage Monitors 0~10Vdc output
8 Common/GND Programming/ Test Point GND
9 P/S FAULT RE On error 9PIN and 10PIN Connected
(Maximum input Voltage 12V)
10 P/S FAULT RE
11 OFF SW H.V OFF 11PIN and 12PIN Disconnected
12 OFF INT H.V ON, OFF Connections
13 ON SW H.V ON 12PIN and 13PIN Connection
14 INSTANT ON H.V INSTANT ON 13PIN and 14PIN Connection
15 12V 12V OUT
16 12V RE 12V GND
17 INTERLOCK 16PIN and 17PIN
18 RESET RESET function 16PIN and 18PIN
19 HV ON OUT HV ON 19PIN and 20PIN Connected
(Maximum input Voltage 12V)
20 HV ON OUT COM

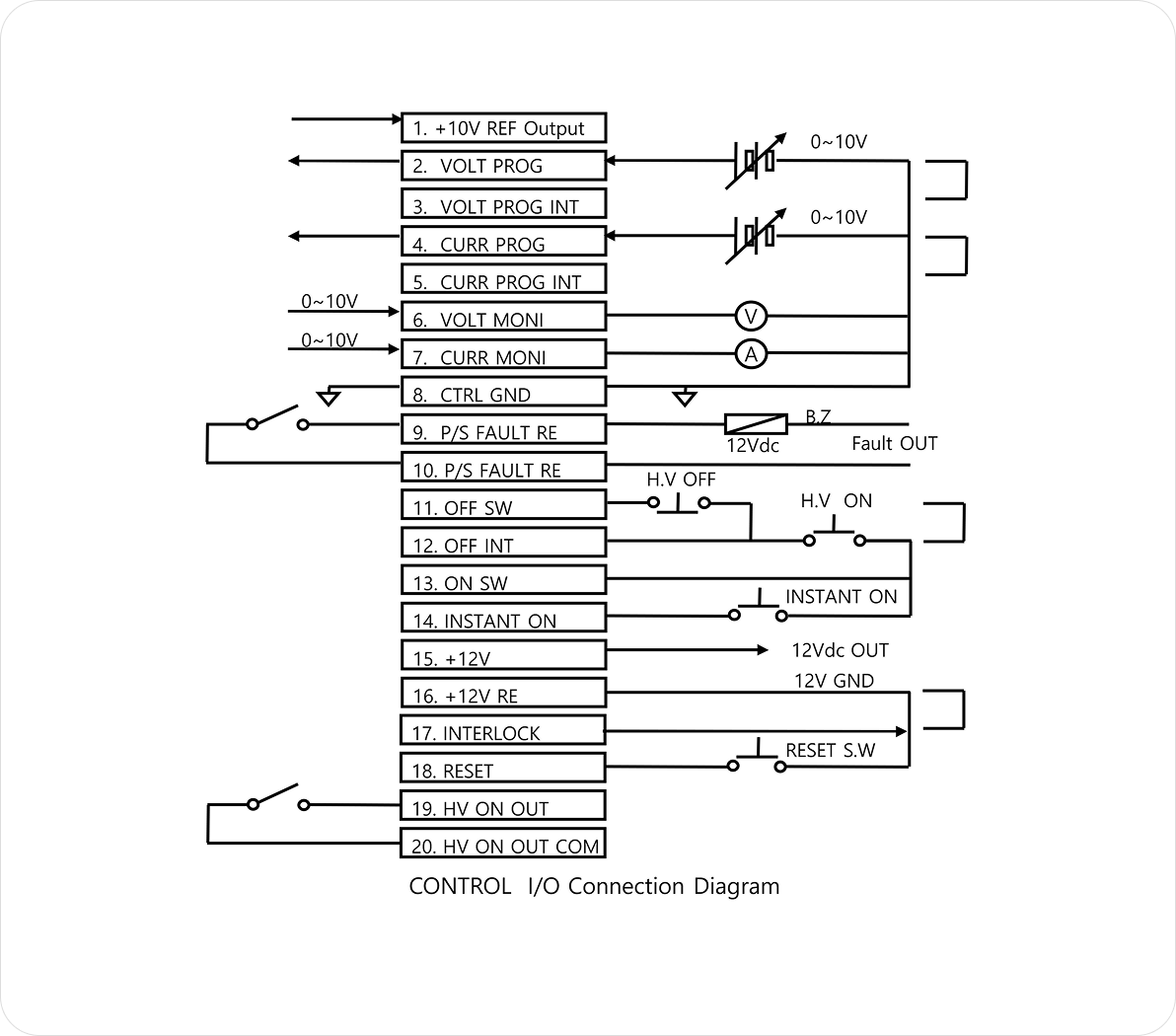

Control I/O

Interface is provided for remote control and monitoring
