제품소개 SHV6000~10000R

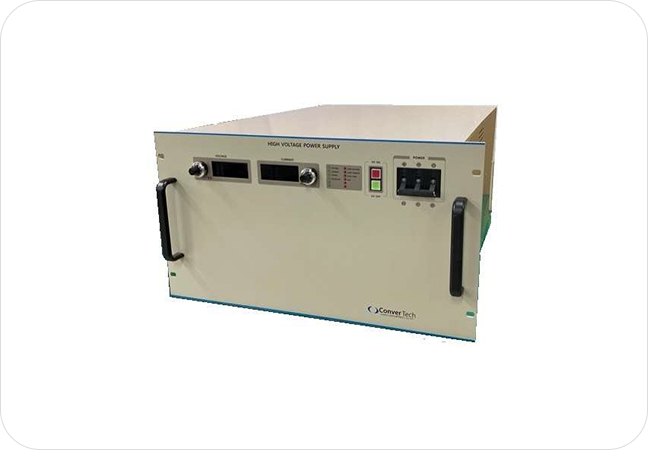

SHV6000~10000R
  • Arc Power Supply
  • Ion Source
  • Capacitor Charging System
  • Ion Implantation CW Lasers
  • General Laboratory
SPECIFICATIONS
  • Status Indicators : Voltage Mode, Current Mode, Open/Close, High Voltage Over Current,Over Voltage, Regulation Err, Over Temperature, Over Power
  • Input Voltage : 380VAC 3Φ ±10% 50/60Hz 25A
  • Output Voltage : 0V to Rated Voltage / Model available from 1~150kV
  • Voltage Regulation : Load: 0.05% at full load change / Line: 0.05% at 10% input change
  • Current Regulation : Load: 0.05% at full load change / Line: 0.05% at 10% input change
  • Ripple : 0.2% within p-p output voltage
  • Efficiency : greater then 80%
  • Temperature coefficient : 100ppm/℃
  • Stability : 0.02% after ½ hour warm-up
  • Front Panel Controls : Voltage and current are adjustable by High voltage ON/OFF SW/indicator.
  • Metering : 3 ½ Digit voltage and current meters

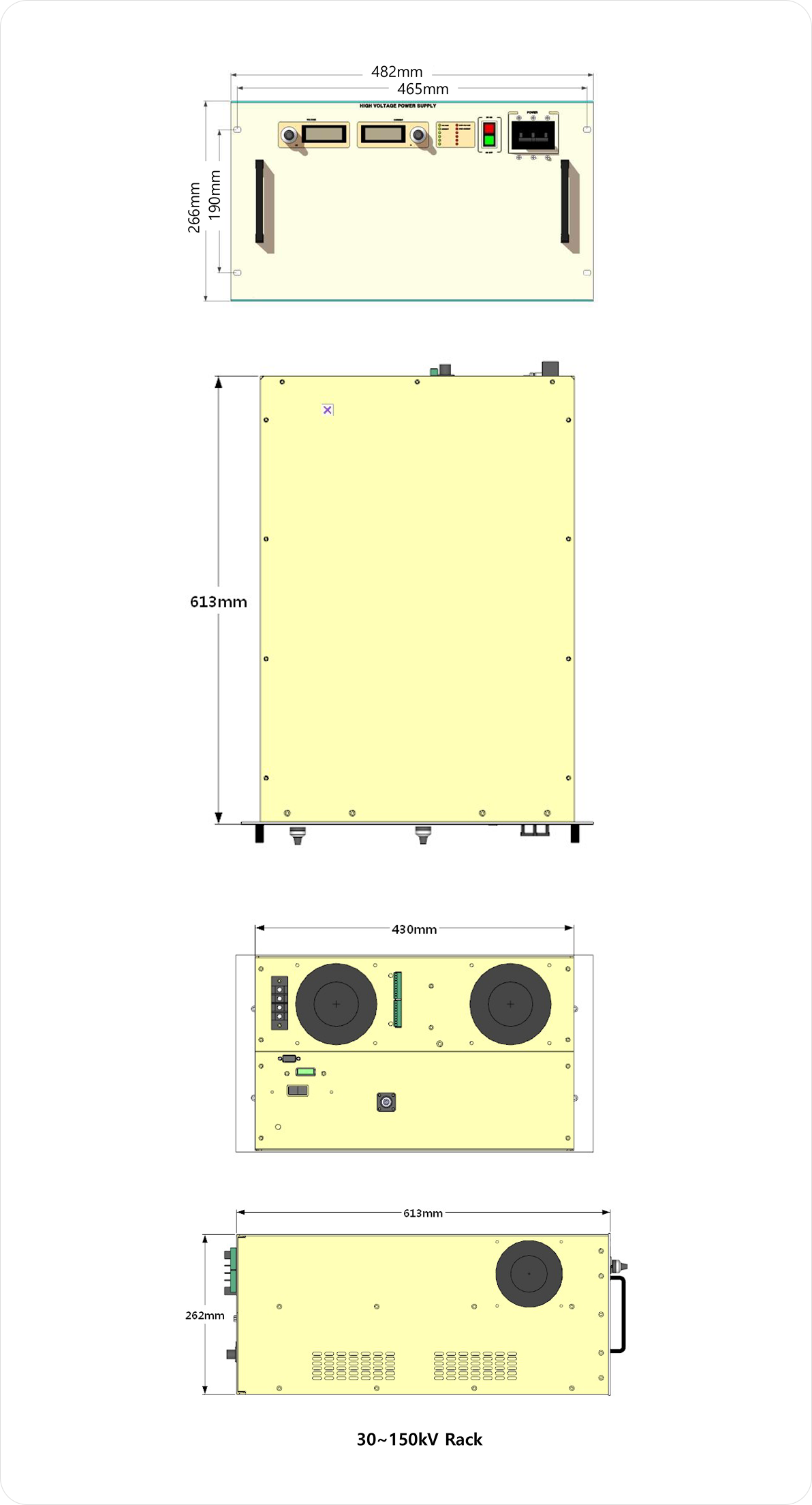

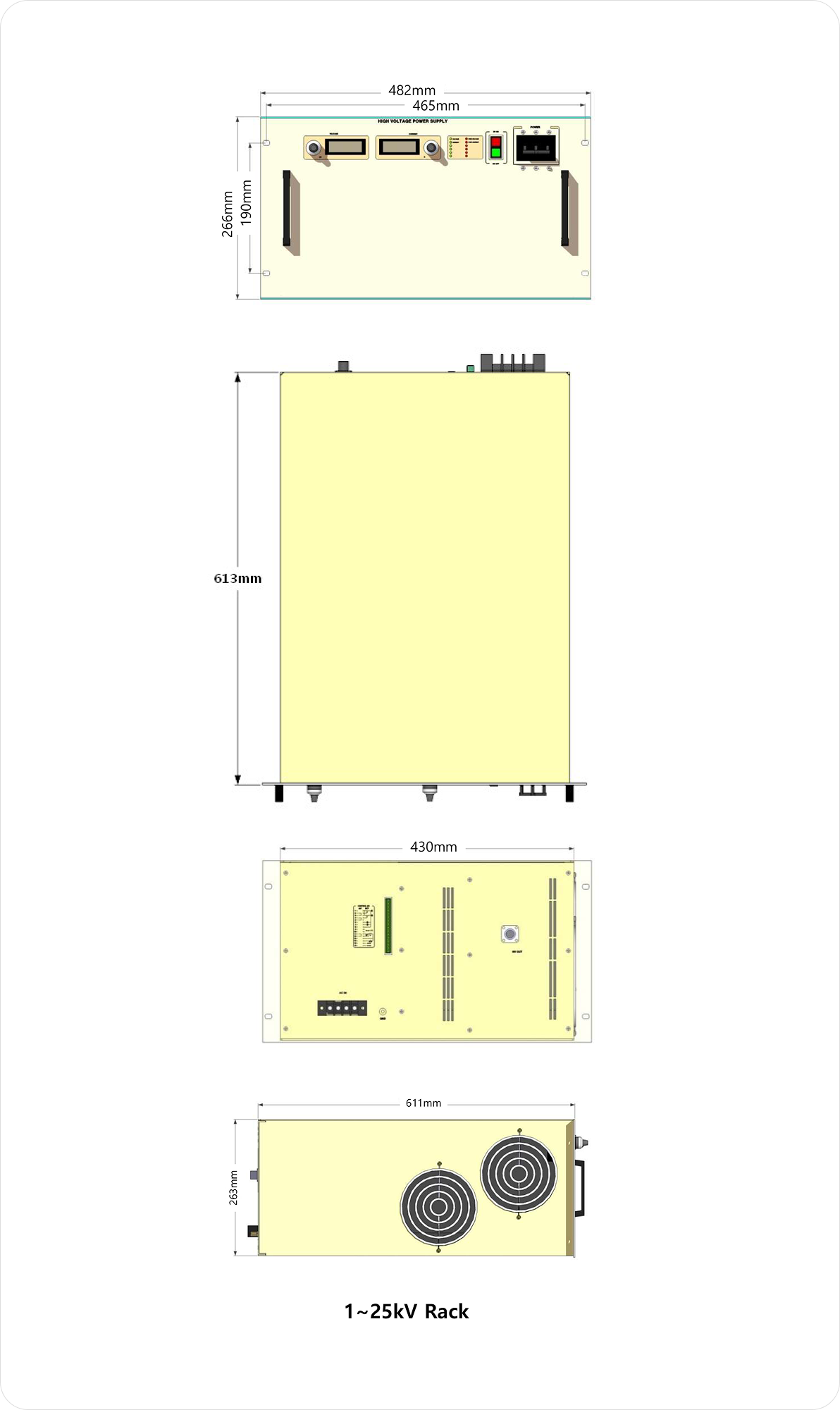

  • Dimensions : 482(W)x132.5(H)x613(D)mm
  • Ambient TemperatureOperating : 0℃ to 40℃ / Storage: -20℃ to 75℃
  • AC Line Input Cable : Not
  • Output Cable : 5m shielded coaxial high voltage cable
  • Weight : 1kV~25kV : 40kg / 30kV~150kV 65kg
SPECIAL FEATURES
  • Voltage range from 1kV~150kV
  • Resonant type converter
  • Very compact & lightweight
  • Low EMI & RFI
  • System status indicator & easy interface
  • Many available option
  • OEM customization available
OPTIONS
  • LR Low Ripple
  • CP Constant Power Control
  • FL Filament power Supply
  • SS Soft Start
  • NS No Soft Start
MODEL
MAX Voltege kV 6000W MAX Current A 10000W MAX Current A
1 6.00 10.00
2 3.00 5.00
3 2.00 3.35
5 1.20 2.00
6 1.00 1.65
10 3.00 1.00
12 0.50 0.85
15 0.40 0.65
20 0.30 0.50
25 0.24 0.40
MAX Voltege kV 6000W Current mA 10000W Current mA
30 200 335
40 150 250
50 120 200
60 100 165
70 85 145
80 75 125
100 60 100
120 50 85
130 45 75
150 40 67
CONNECTOR
PIN Function Parameter
1 +10Vdc Reference 10Vdc output
2 Voltage Programming Input 0~10Vdc Zo = 5KΩ
3 Voltage Programming Output Front Voltage Volume Control
4 Current Programming Input 0~10Vdc Zout = 5kΩ
5 Current Programming Output Front Current Volume Control
6 Current Monitors 0~10Vdc output
7 Voltage Monitors 0~10Vdc output
8 Common/GND Programming/ Test Point GND
9 P/S FAULT RE On error 9PIN and 10PIN Connected
(Maximum input Voltage 12V)
10 P/S FAULT RE
11 OFF SW H.V OFF 11PIN and 12PIN Disconnected
12 OFF INT H.V ON, OFF Connections
13 ON SW H.V ON 12PIN and 13PIN Connection
14 INSTANT ON H.V INSTANT ON 13PIN and 14PIN Connection
15 12V 12V OUT
16 12V RE 12V GND
17 INTERLOCK 16PIN and 17PIN
18 RESET RESET function 16PIN and 18PIN
19 HV ON OUT HV ON 19PIN and 20PIN Connected
(Maximum input Voltage 12V)
20 HV ON OUT COM

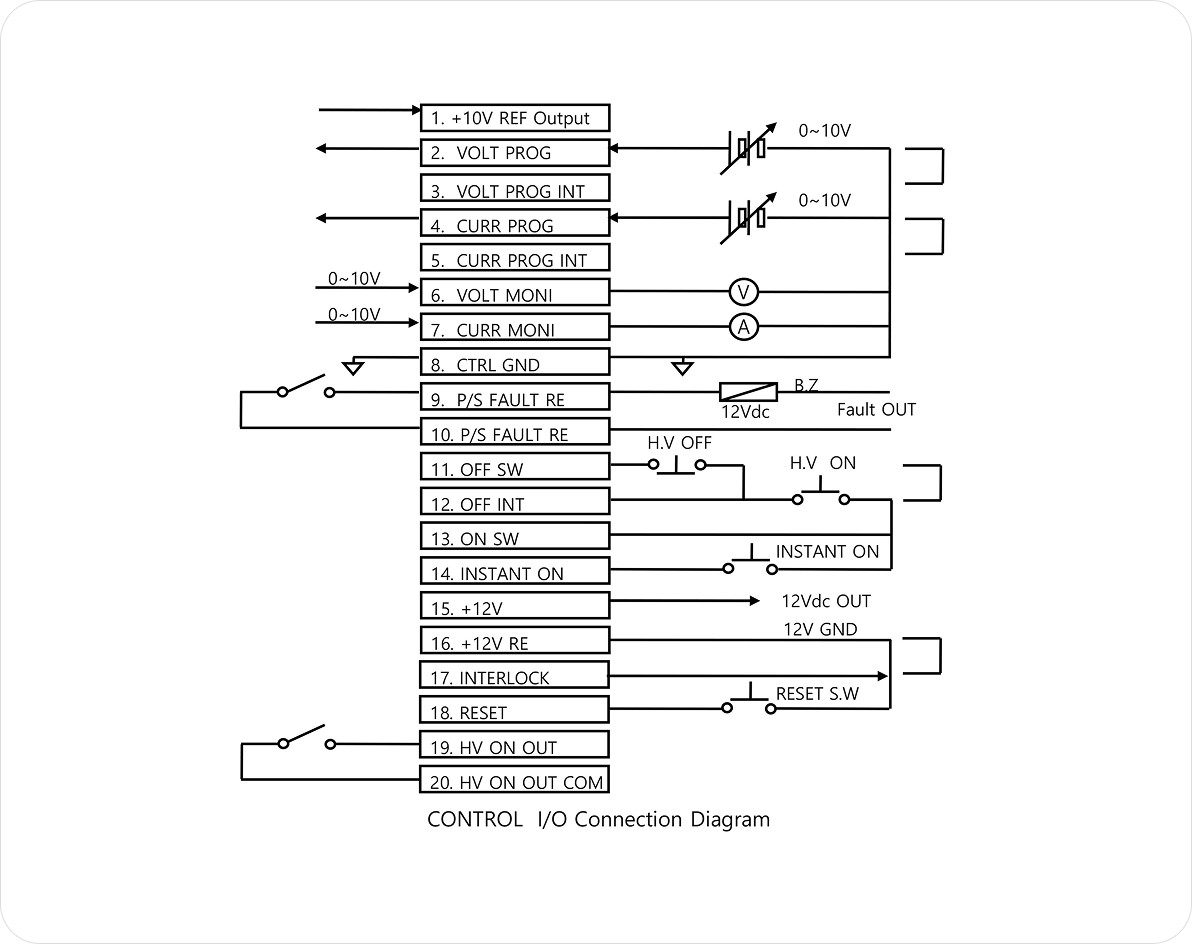

Control I/O

Interface is provided for remote control and monitoring
