SHV Series의 다양한 직류고전압 전원장치를 지원하며 Module Type 및 Rack Type으로 선택 가능합니다.

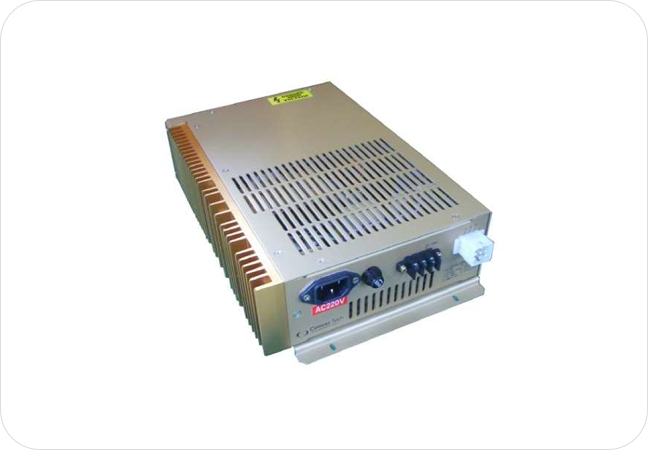

제품소개 SHV200~300M
SHV200~300M
- Analytical X-ray Source Electrostatics
- E-beam System Radar Modulator
- Ion Implantation
- Capacitor Charging System
- Ion Implantation CW Lasers
- General Laboratory
SPECIFICATIONS
- Input Voltage : 110V or 220V ±10% 50/60Hz
- Output Voltage : 0V to Rated Voltage / Model available from 1kV to 60kV
- Voltage Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
- Current Regulation : Load: 0.01% at full load change / Line : 0.01% at 10% input change
- Ripple : 0.1% within rms output voltage
- Efficiency : greater then 80%
- Temperature coefficient : 100ppm/℃
- Stability : 0.01%(100ppm) after ½ hour warm-up / 0.02%(200ppm) per 8 hour
- Voltage & Current Monitors : 0~10V (±0.5%)

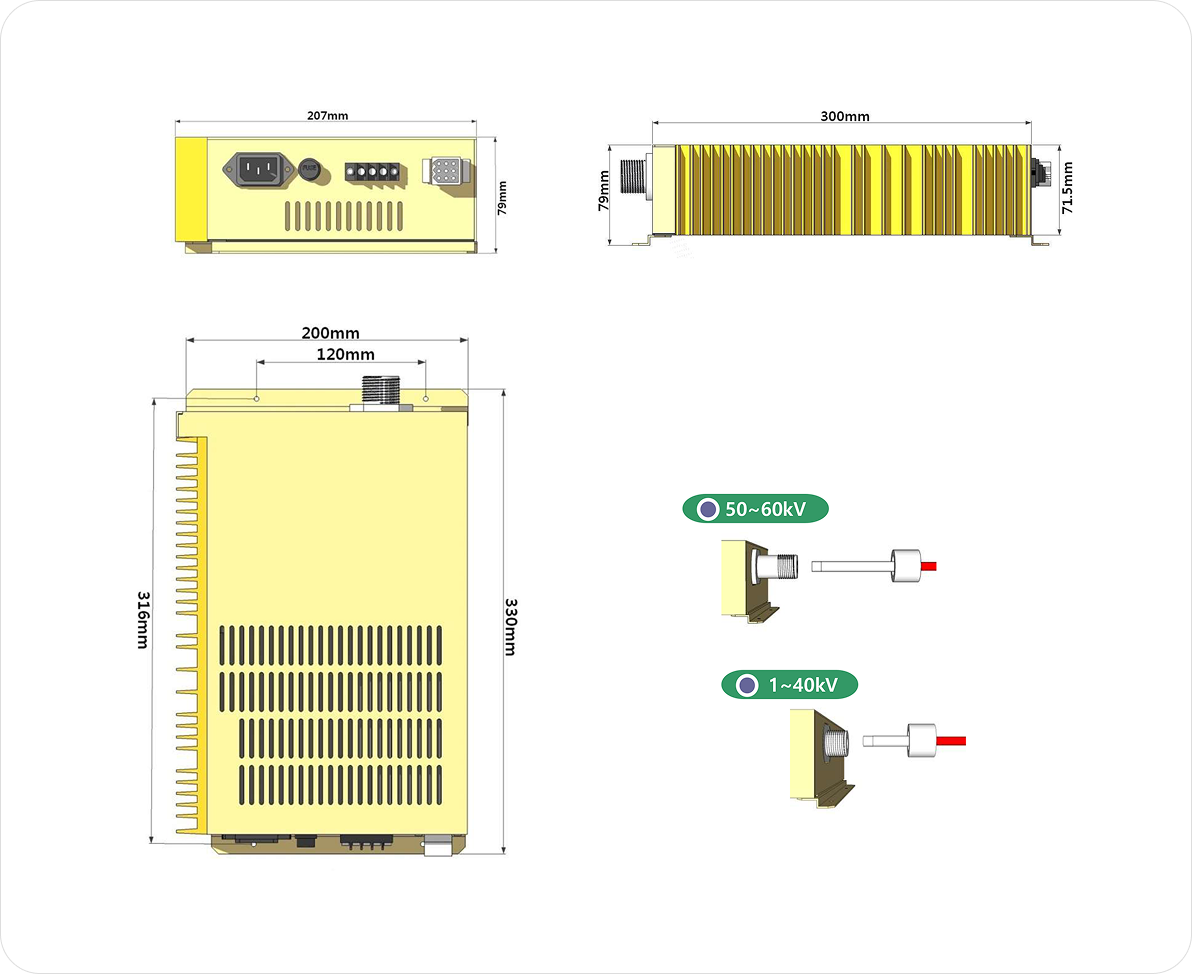

- Dimensions : 206(W)x80(H)x300(D)mm: 1kV-60kV
- Ambient Temperature : Operating: 0℃ to +40℃ / Storage: -20℃ to +75℃
- AC Line Input : IEC320 with mating cable
- Output Cable : 1P High Voltage Connector
- Weight : 4.95 kg
SPECIAL FEATURES
- Voltage range from 1kV to 60kV
- Resonant type converter
- Low Stored Energy
- Over voltage & Short protection
- Output ON/OFF Control
- Voltage & Current Monitoring
- Very compact & lightweight
- Low EMI & RFI
- OEM customization available
OPTIONS
- SS Soft Start
- NS No Soft Start
SHV200 SERIES MODELS
| SHV 200M | ||||||
|---|---|---|---|---|---|---|
| MAX Voltage | 1kV | 5kV | 10kV | 20kV | 30kV | 40kV |
| MAX Current | 200mA | 40mA | 20mA | 10mA | 6.5mA | 5mA |
SHV300 SERIES MODELS
| SHV300 | |||||||
|---|---|---|---|---|---|---|---|
| MAX Voltage | 1kV | 10kV | 20kV | 30kV | 40kV | 50kV | 60kV |
| MAX Current | 300mA | 30mA | 15mA | 10mA | 7.5mA | 6mA | 5mA |
CONNECTOR
| PIN | Function | Parameter |
|---|---|---|
| 1 | +10Vdc Reference | 10Vdc output |
| 2 | Current Programming | Input 0~10Vdc Zout = 5KΩ |
| 3 | Voltage Monitors | Output 0~10Vdc |
| 4 | Voltage Programming | Input 0~10Vdc Zout = 5kΩ |
| 5 | Current Test Point | Output 0~10Vdc |
| 6 | Common/GND | H.V ON 6PIN and 7PIN Disconnected |
| 7 | Enable input | |
| 8 | OVP Indicator | On Error Ground Connection (Maximum input Voltage 5V) |
| 9 | CTR & Monitor Returns | Programming/ Monitors Ground |

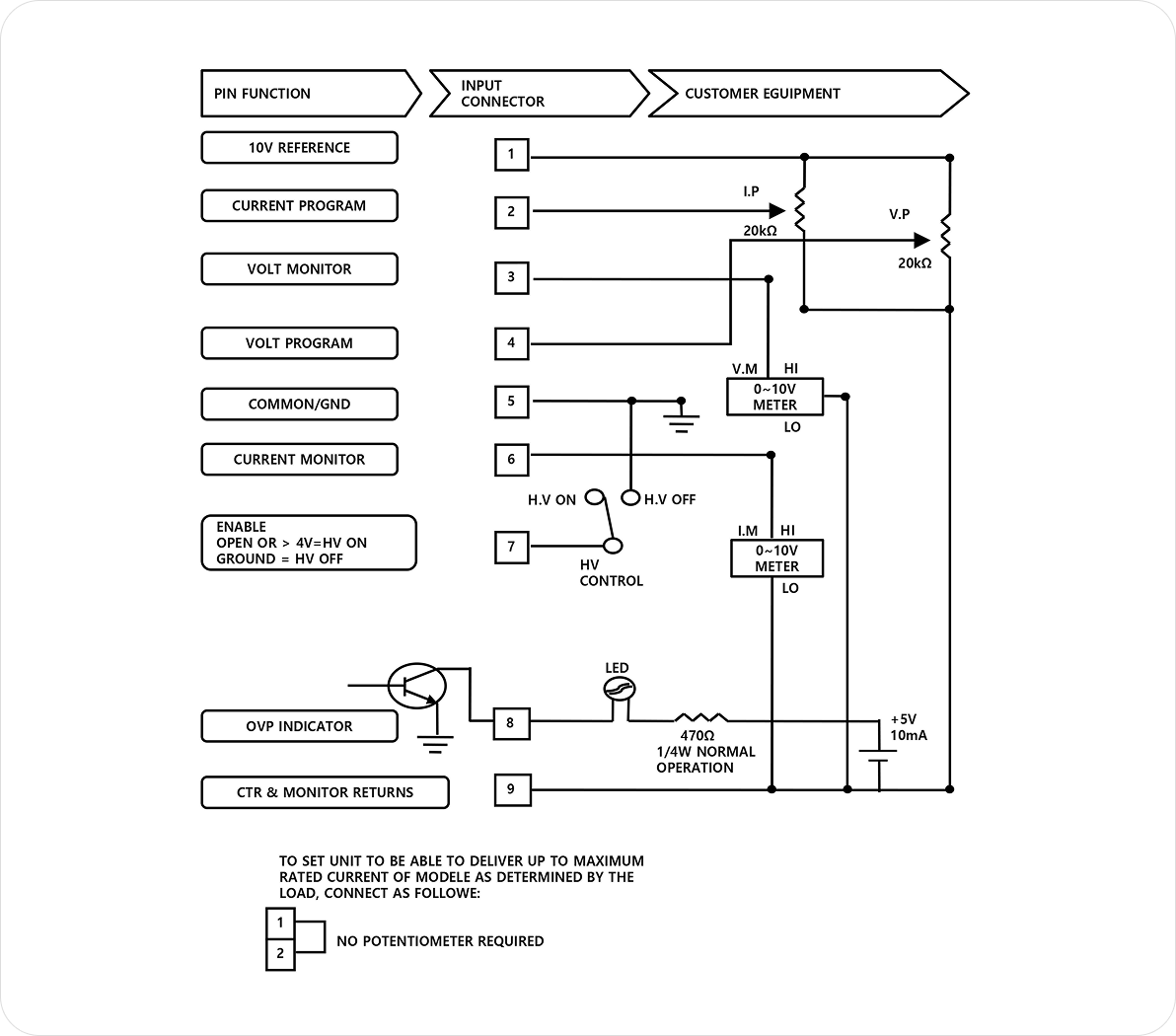

Control I/O
