제품소개 SHV20000R

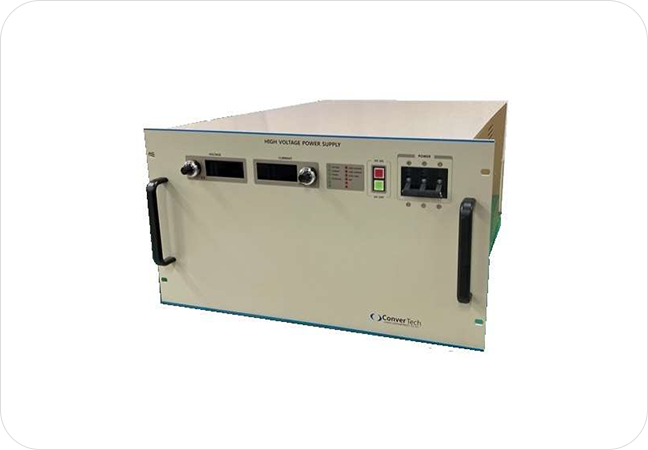

SHV20000R
  • Analytical X-ray Source Electrostatics
  • E-beam System Radar Modulator
  • Ion Implantation
  • Capacitor Charging System
  • Ion Implantation CW Lasers
  • General Laboratory
SPECIFICATIONS
  • Status Indicators : Voltage Mode, Current Mode, Over Current, Over Voltage, Over Temperature,
  • Input Voltage : 380VAC 3Φ ±10% 50/60Hz
  • Output Voltage : 0V to Rated Voltage / Model available from 1kV to 20kV
  • Voltage Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
  • Current Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
  • Ripple : 0.2% rms output voltage
  • Efficiency : greater then 80%
  • Temperature coefficient : 100ppm/℃
  • Stability : 0.01% after ½ hour warm-up 0.02% per 8 hour
  • Voltage & Current Monitors : 0-10V (±0.5%)
  • Front Panel Controls : Voltage and current are adjustable by High voltage ON/OFF SW/indicator.
  • Metering : 3 ½ Digit voltage and current meters

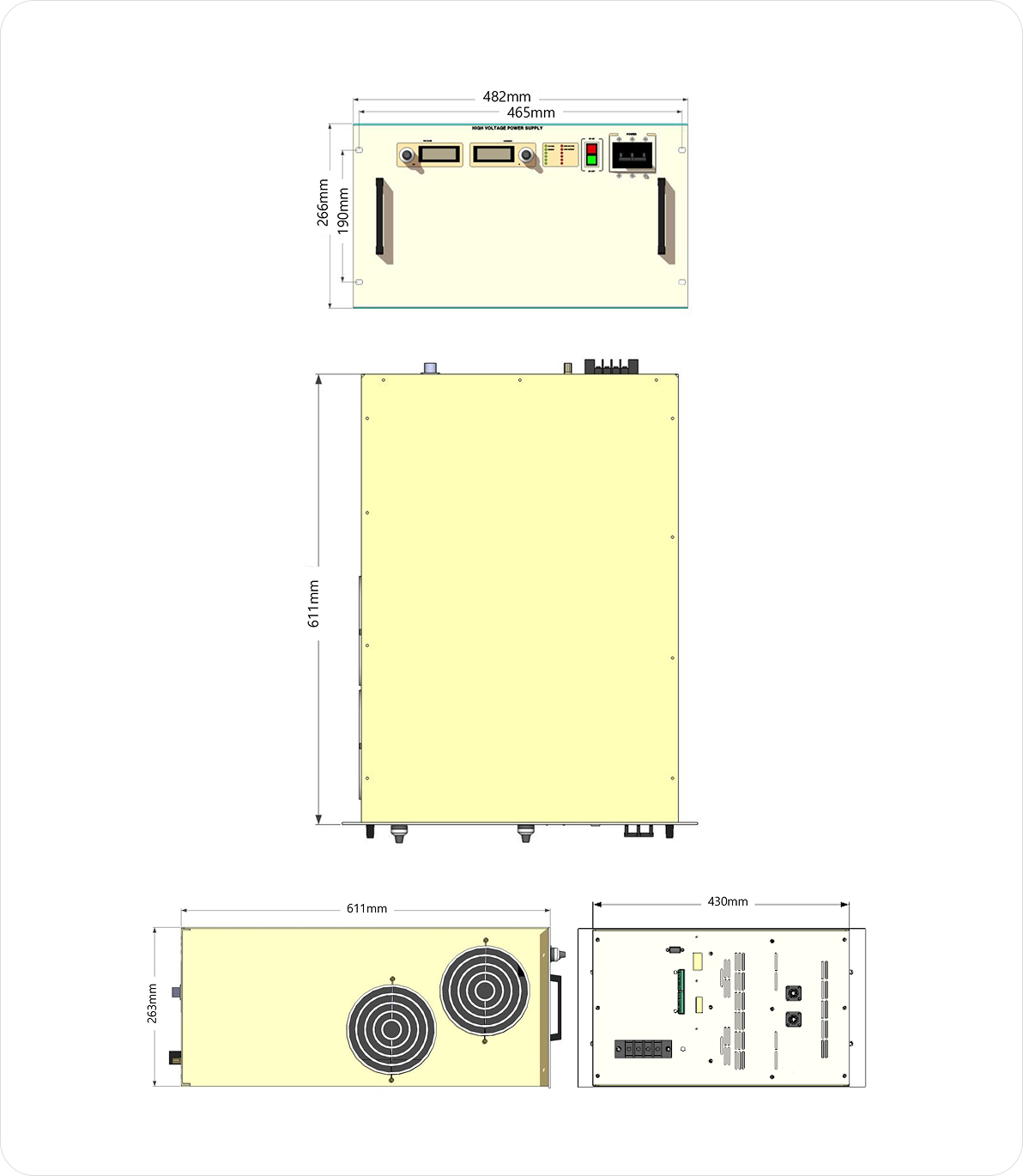

  • Dimensions : 482(W)x266(H)x611(D)mm : 1kV~20kV
  • Ambient Temperature : Operating: 0℃ to 40℃ / Storage: -10℃ to 75℃
  • AC Line Input Cabl : Not
  • Output Cable : 3m shielded coaxial high voltage cable
  • Weight : 35kg-45kg
SPECIAL FEATURES
  • Voltage range from 1kV to 20kV
  • Resonant type converter
  • Very compact & lightweight
  • Low EMI & RFI
  • System status indicator & easy interface
  • Many available option
  • OEM customization available
OPTIONS
  • LR Low Ripple
  • CP Constant Power Control
  • SS Soft Start
  • NS No Soft Start
SHV20000R SERIES RACK
SHV20000 5kV SHV20000 10kV SHV20000 20kV
MAX Voltage 5kV 10kV 20kV
MAX Current 4A 2A 1A
CONNECTOR
PIN Function Parameter
1 +10Vdc Reference 10Vdc output
2 Voltage Programming Input 0~10Vdc Zo = 5KΩ
3 Voltage Programming Output Front Voltage Volume Control
4 Current Programming Input 0~10Vdc Zout = 5kΩ
5 Current Programming Output Front Current Volume Control
6 Current Monitors 0~10Vdc output
7 Voltage Monitors 0~10Vdc output
8 Common/GND Programming/ Test Point GND
9 P/S FAULT RE On error 9PIN and 10PIN Connected
(Maximum input Voltage 12V)
10 P/S FAULT RE
11 OFF SW H.V OFF 11PIN and 12PIN Disconnected
12 OFF INT H.V ON, OFF Connections
13 ON SW H.V ON 12PIN and 13PIN Connection
14 INSTANT ON H.V INSTANT ON 13PIN and 14PIN Connection
15 12V 12V OUT
16 12V RE 12V GND
17 INTERLOCK 16PIN and 17PIN
18 RESET RESET function 16PIN and 18PIN
19 HV ON OUT HV ON 19PIN and 20PIN Connected
(Maximum input Voltage 12V)
20 HV ON OUT COM

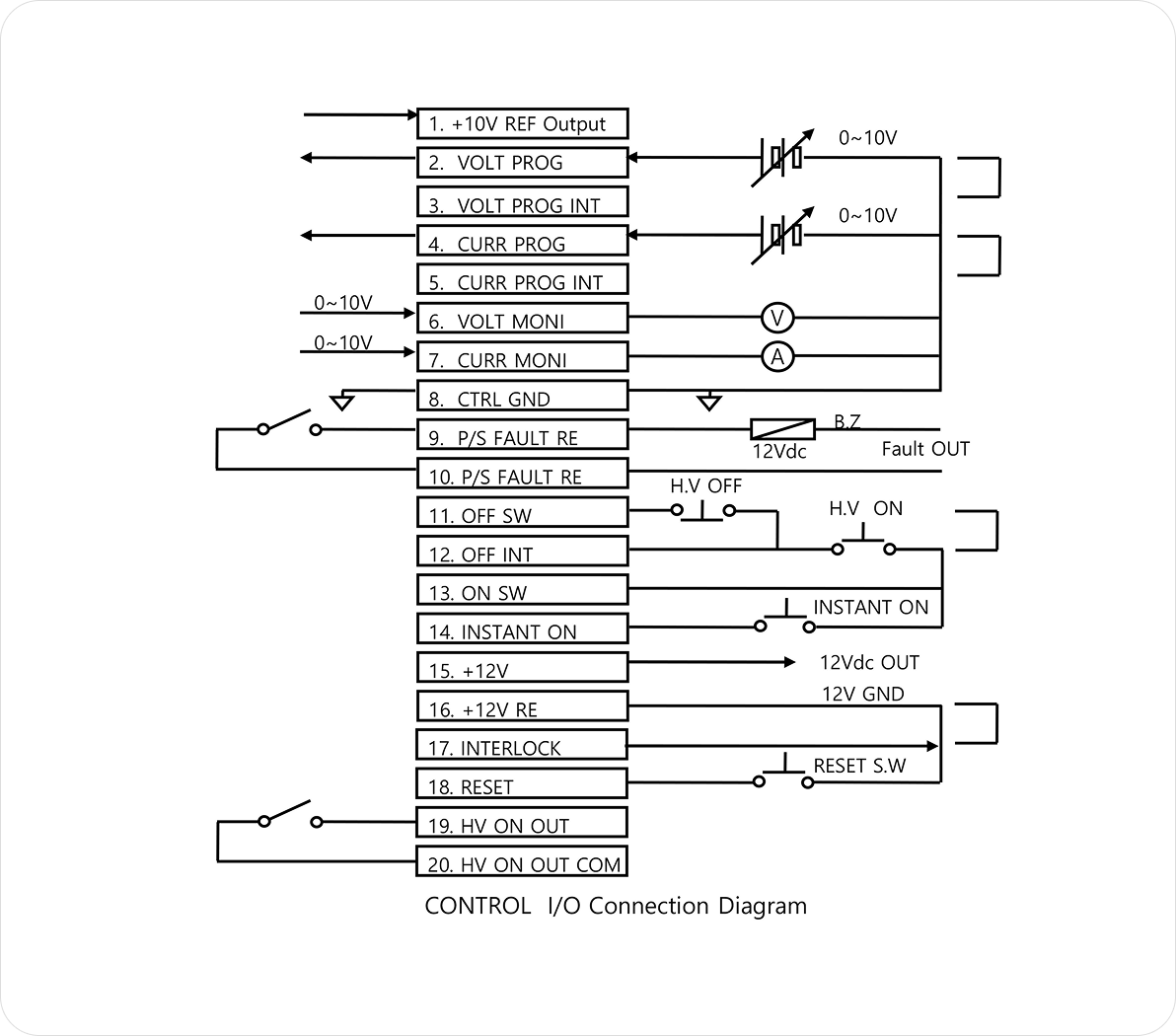

Control I/O

Interface is provided for remote control and monitoring
