SHV Series의 다양한 직류고전압 전원장치를 지원하며 Module Type 및 Rack Type으로 선택 가능합니다.

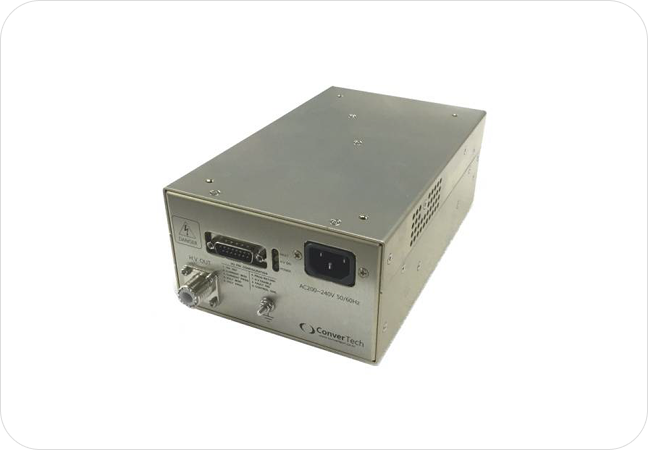

제품소개 H120~200M
H120~200M
  • Analytical X-ray Source Electrostatics
  • E-beam System Radar Modulator
  • Ion Implantation
  • Capacitor Charging System
  • Ion Implantation CW Lasers
  • General Laboratory
SPECIFICATIONS
  • Status Indicators : Voltage Mode, Current Mode Open/Close, High Voltage, Over Voltage, Over Current Regulation Err
  • Input Voltage : 110V or 220V ±10% 50/60Hz 4A
  • Output Voltage : 0V to Rated Voltage / Model available from 1kV to 60kV
  • Voltage Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
  • Current Regulation : Load: 0.01% at full load change / Line: 0.01% at 10% input change
  • Ripple : 0.1% within rms output voltage
  • Efficiency : greater then 80%
  • Temperature coefficient : 100ppm/℃
  • Stability : 0.01%(100ppm) after ½ hour warm-up / 0.02%(200ppm) per 8 hour
  • Voltage & Current Monitors : 0~10V (±1%)

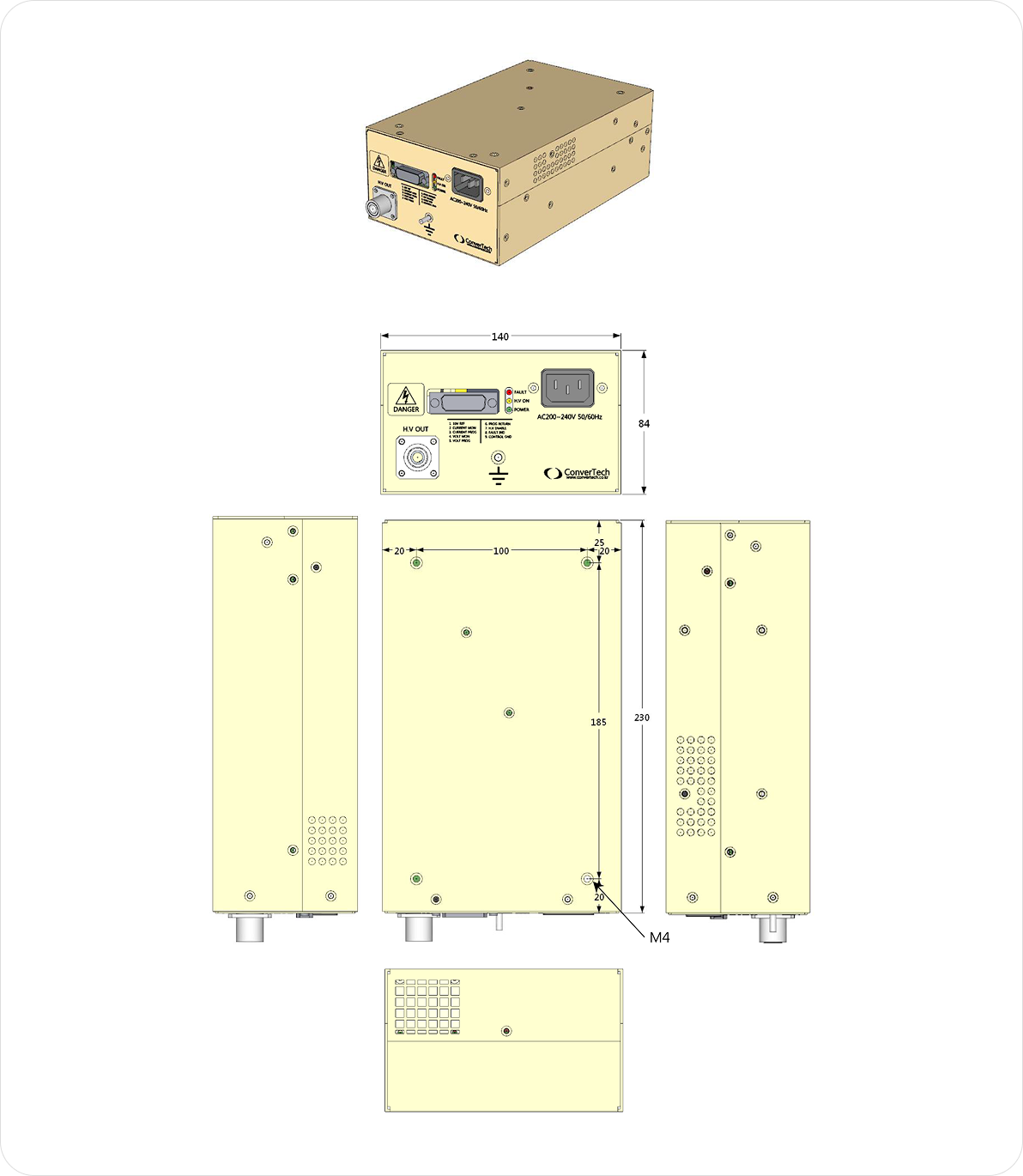

  • Dimensions : 230(W)x84(H)x140(D)mm
  • Ambient Temperature : Operating: 0℃ to +45℃ / Storage: -20℃ to +75℃
  • AC Line Input Cabl : IEC320 with mating cable
  • Output Cable : 1P High Voltage Connector (2m)
  • Weight : 3.5kg ~ 4kg
SPECIAL FEATURES
  • Voltage range from 1kV to 60kV
  • Resonant type converter
  • Low Stored Energy
  • Over voltage & Short protection
  • Output ON/OFF Control
  • Voltage & Current Monitoring
  • Very compact & lightweight
  • Low EMI & RFI
  • OEM customization available
OPTIONS
  • FG Floating GND
  • SS Soft Start
  • NS No Soft Start
H120M SERIES MODELS
H120M 1~60kV
MAX Voltage 1kV 2kV 3kV 5kV 10kV 20kV 30kV 40kV 50kV 60kV
MAX Current 120mA 60mA 40mA 24mA 12mA 6mA 4mA 3mA 2.5mA 2mA
H200M SERIES MODELS
H200M 1~60kV
MAX Voltage 1kV 2kV 3kV 5kV 10kV 20kV 30kV 40kV 50kV 60kV
MAX Current 200mA 100mA 65mA 40mA 20mA 10mA 6.5mA 5mA 4mA 3.3mA
CONNECTOR
PIN Function Parameter
1 +10Vdc Reference 10Vdc output
2 Current Monitors Output 0~10Vdc Zout = 1KΩ
3 Current Programming Input 0~10Vdc
4 Voltage Monitors Output 0~10Vdc Zout = 1KΩ
5 Voltage Programming Input 0~10Vdc
6 PROG RETURN GND
7 Enable input H.V ON 6PIN and 7PIN Disconnected
8 FAUIT IND On Error Ground Connection (Maximum input Voltage 5V)
9 CTR & Monitor Returns Programming/ Monitors Ground
