SHV Series의 다양한 직류고전압 전원장치를 지원하며 Module Type 및 Rack Type으로 선택 가능합니다.

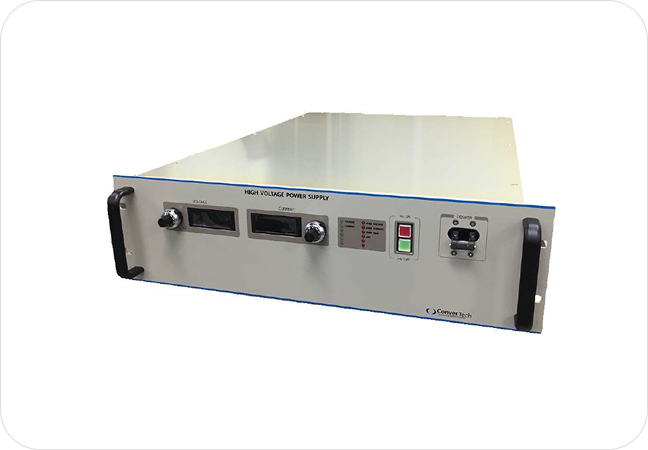

제품소개 SHV2500~3000R
SHV2500~3000R
  • X-ray Source Electrostatics
  • E-beam System CPT/CDT System
  • Capacitor Charging System
  • Testing CW Lasers
  • General Laboratory
SPECIFICATIONS
  • Status Indicators : Voltage Mode, Current Mode, Open/Close, High Voltage Over Current, Over Voltage, Over Temperature,
  • Input Voltage : put Voltage 220VAC ±10% 50/60Hz 2Φ
  • Output Voltage : 0V to Rated Voltage / Model available from 1kV to 120kV
  • Voltage Regulation : Load: 0.01% at full load change / ine: 0.01% at 10% input change
  • Current Regulation : Load: 0.05% at full load change / Line: 0.05% at 10% input change
  • Ripple : 0.1% within p-p output voltage
  • Efficiency : greater then 80%
  • Temperature coefficient : 100ppm/℃
  • Front Panel Controls : Voltage and current are adjustable by 10turn potentiometers with lockable counting dials, Circuit breaker, High voltageON/OFF SW/indicator.
  • Metering : 3 ½ Digit voltage and current meters

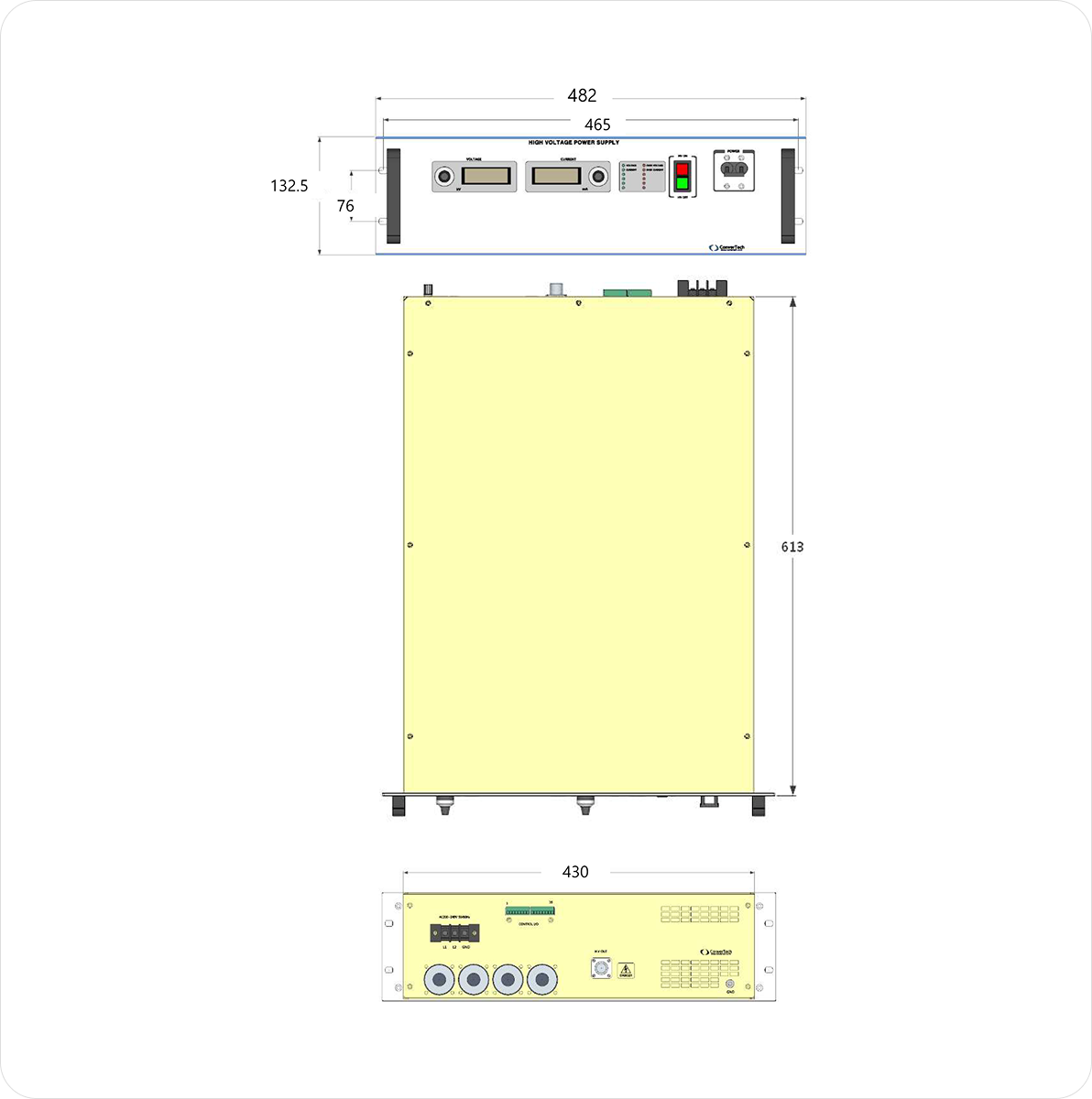

  • Dimensions : 482(W)x132.5(H)x613(D)mm
  • Ambient Temperature : Operating: 0℃ to 40℃ / Storage: -20℃ to 75℃
  • AC Line Input Cable : NC
  • Output Cable : 3m shielded coaxial high voltage cable
  • Weight : 17kg-33kg
SPECIAL FEATURES
  • Voltage range from 1kV to 120kV
  • Resonant type converter
  • Very compact & lightweight
  • Low EMI & RFI
  • System status indicator & easy interface
  • Many available option
  • OEM customization available
OPTIONS
  • LR Low Ripple
  • CP Constant Power Control
  • SS Soft Start
  • NS No Soft Start
CONNECTOR
PIN Function Parameter
1 +10Vdc Reference 10Vdc output
2 Voltage Programming Output 0~10Vdc Zout = 1KΩ
3 Voltage Programming Output Input 0~10Vdc
4 Current Programming Output 0~10Vdc Zout = 1KΩ
5 Current Programming Output Input 0~10Vdc
6 Current Monitors GND
7 Voltage Monitors H.V ON 6PIN and 7PIN Disconnected
8 Common/GND On Error Ground Connection (Maximum input Voltage 5V)
9 P/S FAULT RE On error 9PIN and 10PIN Connected
(Maximum input Voltage 12V)
10 P/S FAULT RE
11 OFF SW H.V OFF 11PIN and 12PIN Disconnected
12 OFF INT H.V ON, OFF Connections
13 ON SW H.V ON 12PIN and 13PIN Connection
14 INSTANT ON H.V INSTANT ON 13PIN and 14PIN Connection
15 12V 12V OUT
16 12V RE 12V GND
17 INTERLOCK 16PIN and 17PIN
18 RESET RESET function 16PIN and 18PIN
19 HV ON OUT HV ON 19PIN and 20PIN Connected
(Maximum input Voltage 12V)
20 HV ON OUT COM

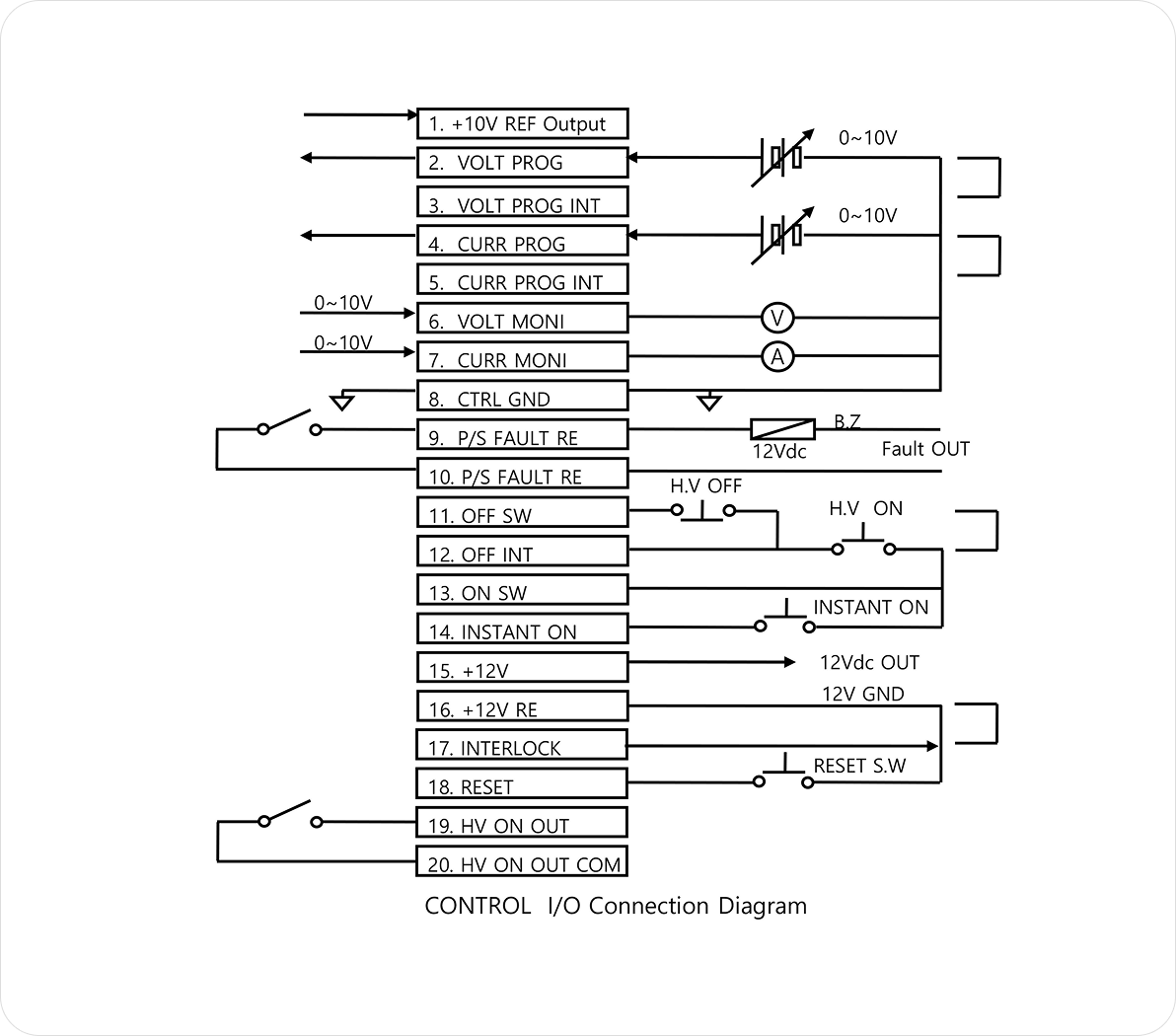

Control I/O

Interface is provided for remote control and monitoring
